Main Types of Manufacturing Inspection Equipment and Their Uses

You encounter several types of manufacturing inspection equipment in the factory, each with a distinct role. Calipers measure dimensions with precision. Micrometers check thickness or diameter. Gauges verify tolerances. Hardness testers assess material strength. Optical tools inspect surfaces visually. Automated inspection systems streamline quality checks. Selecting the right tool for each job improves product quality and production efficiency, as industry studies show that in-process inspections using calipers and other tools help maintain compliance and reduce waste.

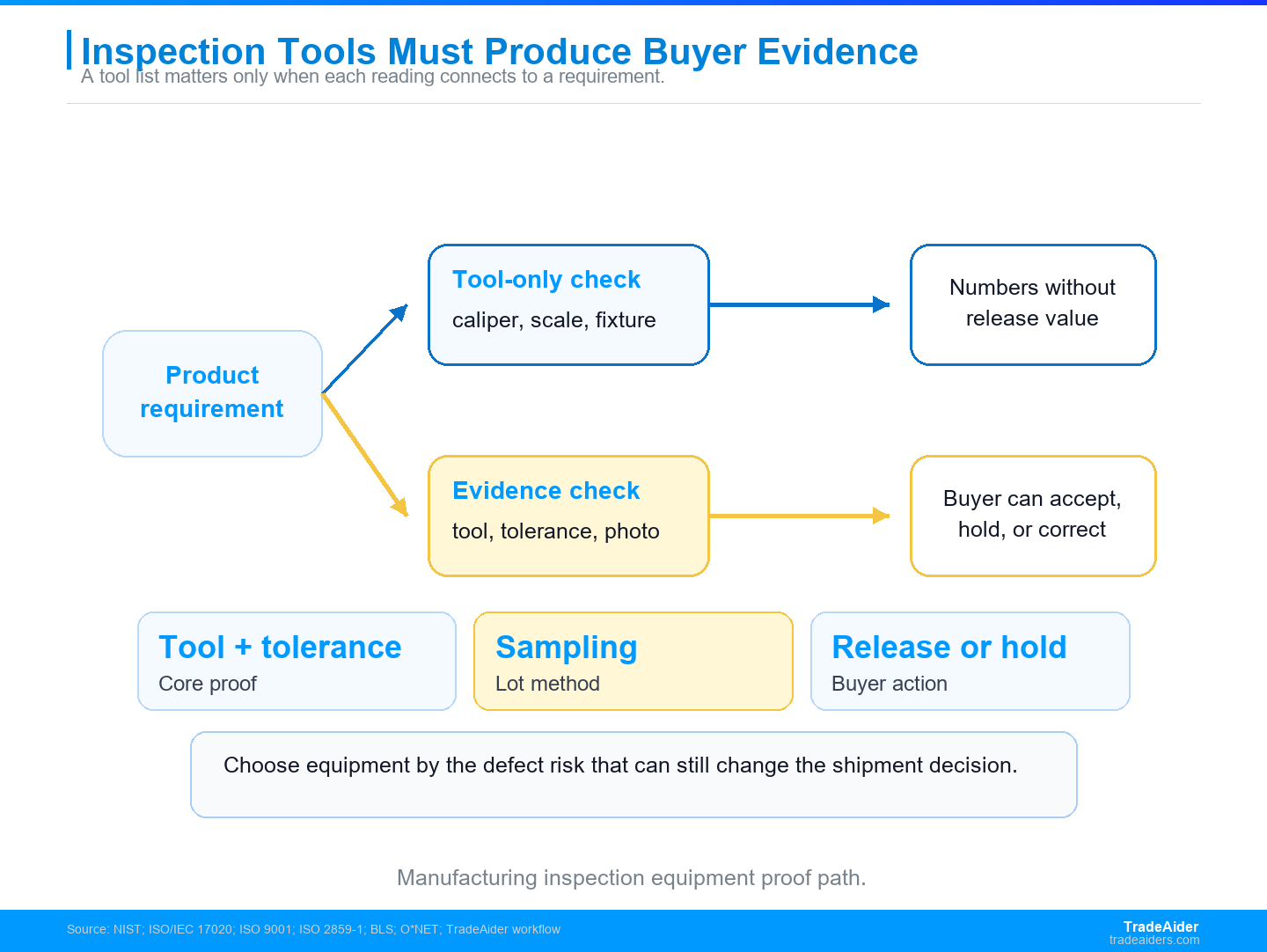

Importance of Manufacturing Inspection Equipment

Quality and Consistency

You rely on manufacturing inspection equipment to maintain high quality and consistent results in every production run. Inspection tools help you catch defects early, which protects your brand reputation and reduces costly waste. When you use robust inspection processes, you prevent defective products from reaching customers. Regular calibration of your inspection equipment ensures accurate measurements, which supports consistent quality control across batches.

A quality control checklist helps you document measurements and tests at each stage. This practice streamlines your quality assurance efforts and keeps your products within specification. Inspection data also drives continuous improvement, reducing scrap and rework over time. You can measure improvements in consistency by tracking metrics like Overall Equipment Effectiveness (OEE) and Overall Production Reliability (OPR). These metrics show how well your equipment and processes perform compared to their ideal standards.

Note: Equipment validation confirms that your machinery operates reliably and safely. This step is vital for preventing defects and maintaining high quality, especially in regulated industries.

Compliance and Standards

Inspection plays a critical role in helping you meet industry standards and regulatory requirements. You must verify that your products comply with specifications before they leave the factory. Inspection occurs at several stages, including pre-production, in-production, pre-shipment, and loading control. Each stage serves a unique purpose in your quality assurance system.

• Pre-production inspection checks raw materials and components before manufacturing begins.
• In-production inspection monitors quality during assembly or processing.
• Pre-shipment inspection ensures finished goods meet customer requirements.
• Loading control verifies that only approved products are shipped.

By using manufacturing inspection equipment at every stage, you reduce the risk of recalls and ensure your products meet both customer and regulatory expectations.

Types of Manufacturing Inspection Equipment

Calipers

You use calipers to measure the external and internal dimensions of parts with high precision. This tool is essential for checking the width, thickness, and depth of components during production. Calipers come in several types, each suited for specific tasks. The table below outlines the most common types and their primary applications:

You rely on calipers for quick checks of dimensions during in-process and final inspection. This tool helps you maintain product accuracy and ensure that parts meet strict tolerances. When you need to measure dimensions repeatedly, digital calipers allow you to collect data efficiently and reduce manual errors.

Micrometers

Micrometers provide you with ultra-precise measurements, often down to thousandths of an inch or hundredths of a millimeter. You use micrometers when you need to verify dimensions that require higher accuracy than calipers can provide. Industries such as aerospace, automotive, and electronics depend on micrometers for critical measurements.

You can choose from several types of micrometers, including outside, inside, and depth micrometers. Each type addresses specific measurement needs, ensuring you can handle a variety of tasks. When selecting a micrometer, consider the following:

• Choose the smallest range that fits your measurements for better accuracy.
• Determine if you need high-resolution instruments for precise applications.
• Match measurement uncertainty needs with micrometer capabilities.
• Consider models that compensate for thermal expansion in varying environments.
• Opt for sealed models in environments with potential contamination.
• Digital models can help reduce errors for less experienced users.
• Assess battery life for digital models in remote applications.
• Look for models that support automated data collection.
• Some applications may benefit from preset dimensions for quick checks.
• Specialized surfaces and extension accessories can enhance measurement for specific geometries.

You use micrometers to check the thickness of sheet metal, the diameter of shafts, and the depth of holes. This tool plays a vital role in metrology and dimensional measurement, especially when you need to ensure product accuracy in high-stakes manufacturing.

Gauges

Gauges serve as your go-to tools for verifying whether parts meet specified tolerances. You use gauges to check dimensions quickly and efficiently, especially in high-volume production environments. The table below summarizes the main categories of gauges and their functions:

You rely on gauges for rapid go/no-go decisions during production. This approach helps you maintain consistency and reduce inspection time. In metrology, gauges play a crucial role in ensuring dimensional measurement accuracy. For example, studies show that coordinate measuring machines (CMM) provide superior stability and reliability compared to digital vernier calipers, especially when measuring tough materials. Principal component analysis helps you select the right metrology tools for high-precision manufacturing, ensuring your gauges deliver reliable results.

Hardness Testers

You use hardness testers to assess the strength and durability of materials. These tools help you determine whether a material can withstand the demands of its intended application. The table below highlights the most widely used hardness testers and their best-suited materials:

Modern portable hardness testers typically achieve an accuracy of ±3% of standard laboratory measurements. This level of precision is adequate for most industrial and field applications. You might use a Rockwell hardness tester for metals during final inspection, while a Shore tester is ideal for rubber and soft plastics. Hardness testing ensures your products meet durability requirements and perform reliably in service.

Optical Inspection Tools

Optical inspection tools allow you to visually examine surfaces and detect defects that might escape traditional measurement tools. You use these tools to inspect computer chips, circuit boards, and other components where surface quality is critical. Optical tools include microscopes, machine vision systems, and advanced imaging software.

You benefit from several key features:

• Optical tools identify defects in products such as computer chips.
• AI software analyzes data and generates reports for engineers, facilitating quick identification and resolution of issues.
• Computer vision technologies enhance defect detection through image processing, enabling real-time inspections.
• Deep learning improves anomaly detection and defect classification, leading to better quality control and timely alerts.
• Machine vision systems act as electronic inspectors, identifying microscopic anomalies that are not visible to the human eye.

Visual inspection ensures your products meet established standards, enhancing accuracy at each production level. Automated inspection provides more precise results than human evaluations, improving overall accuracy and compliance with industry standards. You minimize errors and prevent defective products from reaching customers, reducing waste and costs.

Optical inspection tools often integrate with automated systems for enhanced quality control. The table below shows some of the technologies you might encounter:

Automated Inspection Systems

Automated inspection systems represent the next level in manufacturing inspection equipment. You use these systems to achieve high-speed, high-accuracy inspection across your production line. Automated systems combine machine vision, robotics, and advanced software to inspect dimensions, surface quality, and assembly integrity.

Key features that set automated inspection apart from manual methods include:

• Speed: Automated systems operate at speeds that surpass human capabilities, allowing for real-time inspection without production delays.
• Accuracy: Machine vision systems maintain higher accuracy levels than manual inspections, particularly in complex scenarios.
• Consistency: Automated inspections are unaffected by human factors such as fatigue, ensuring uniform quality standards.
• Cost Efficiency: Implementation of automated systems leads to reduced labor costs and improved yield rates, providing a rapid return on investment.
• Process Optimization: Real-time defect detection allows for immediate adjustments in production, supporting lean manufacturing principles.

You see significant improvements in throughput and error reduction when you implement automated inspection. For example, a medical device manufacturer improved component inspection quality by 65% using automated inspection compared to manual methods. An electronics manufacturer achieved a sixfold increase in throughput with only a quarter of the manual inspection labor by implementing machine vision technology. In automotive manufacturing, machine vision systems reduced inspection times by 50%. AI-enhanced systems in semiconductor manufacturing cut inspection time by 60%. Automated inspection systems operate continuously, eliminating breaks and fatigue, which enhances throughput. They enable high-speed data analysis for immediate decision-making, further improving operational efficiency.

You rely on manufacturing inspection equipment such as calipers, micrometers, gauges, hardness testers, optical inspection tools, and automated inspection systems to ensure your products meet strict dimensions, tolerances, and quality standards. Each tool plays a unique role in your quality assurance process, helping you achieve reliable product accuracy and efficient defect detection throughout your manufacturing operations.

Manual vs. Digital Inspection Equipment

Manual Tools

You rely on manual inspection tools for tasks that demand hands-on expertise and adaptability. Tools such as calipers, micrometers, and gauges require skilled operators who understand the nuances of measurement. Manual inspection works best when you need to handle unique or rare defects that automated systems might miss. You can adjust your approach quickly, making manual tools ideal for low-volume or custom production runs.

Manual inspection offers flexibility and lower initial costs. However, you must consider the potential for human error and slower inspection speeds. Skilled inspectors play a crucial role in regulatory compliance and complex cases. You often use manual methods to validate digital results or address special requirements.

Tip: Regular training and calibration help you maintain accuracy with manual tools.

Digital Tools

Digital inspection equipment transforms your quality control process. You use digital calipers, automated vision systems, and AI-powered software to achieve high accuracy and speed. Digital tools excel in high-volume environments, where you need consistent results and rapid throughput. These systems operate without fatigue, reducing the risk of missed defects.

You benefit from real-time updates and advanced data analysis. Digital inspection tools help you identify trends, improve accountability, and enhance data security. You can streamline workflows and boost overall quality assurance. When you need to minimize human error and maximize efficiency, digital tools provide a reliable solution.

Note: You achieve the best results by matching the inspection method to your production needs. Use manual tools for flexibility and complex cases. Choose digital tools for speed, accuracy, and data-driven decision-making.

Contact vs. Non-Contact Methods

Contact Inspection

You use contact inspection methods when you need direct measurement or testing of a product’s physical properties. These methods require the inspection tool to touch the part. Common examples include calipers, micrometers, and thermocouples. Contact inspection offers high accuracy and stable results, making it a reliable choice for many manufacturing tasks.

Key characteristics of contact inspection:

• Direct contact with the object provides precise measurement data.
• Mature technology ensures consistent performance.
• Suitable for applications where surface damage is not a concern.

However, you should consider some limitations. Contact methods can sometimes damage delicate surfaces. They may also require regular maintenance and can struggle in harsh environments.

Tip: Use contact inspection for critical dimensions, thickness, or hardness checks where accuracy is your top priority.

Non-Contact Inspection

You turn to non-contact inspection methods when you need to measure or inspect without touching the product. These methods use technologies like lasers, cameras, or electromagnetic sensors. Non-contact inspection works well for fragile, soft, or high-speed parts.

Main features of non-contact inspection:

• No risk of surface damage.
• Suitable for extreme temperatures or moving parts.
• Enables fast, automated inspection.

Non-contact methods often cost more and may offer lower accuracy in some cases. Still, you gain speed and flexibility, especially for complex shapes or delicate materials.

How to choose the right method?

• For high-precision, stable environments, use contact inspection.
• For fragile, moving, or hard-to-reach parts, choose non-contact inspection.
• Always review your product’s design and quality requirements before selecting a method.
• Use a checklist to ensure you cover all critical inspection points.

Note: Matching your inspection method to your product and process ensures reliable results and efficient quality control.

Choosing Automated Inspection Equipment

Factors for Selection

When you select automated inspection equipment for your facility, you need to focus on several critical factors. Start by evaluating how the equipment will impact productivity and operational efficiency. Automated inspection systems should increase production speed and optimize your processes. Always check that the machinery complies with industry safety standards and regulations. You must also assess the technologies used, such as high-resolution cameras and machine vision, to ensure effective decision-making.

Consider the sustainability of the equipment. Modern automated inspection systems often use energy-efficient components and support environmentally friendly operations. Ease of operation and training requirements matter as well. Choose systems that your staff can learn quickly, reducing downtime during implementation.

You should also look at how well automated inspection systems integrate with your existing production technologies. Seamless integration enables real-time monitoring and advanced data analytics, which are essential for quality operations. Automated inspection systems can inspect thousands of parts per hour, far surpassing manual mechanical parts inspection tools. These systems deliver consistent accuracy, detecting defects with up to 99% reliability.

Tip: Machine vision systems are especially valuable when manual inspection becomes a bottleneck. Automated inspection systems can reduce manual workload by up to 75%.

Practical Tips

To implement automated inspection systems successfully, you need a clear strategy. Begin with a thorough assessment of your current inspection process. Define your inspection requirements before selecting a system. Pilot projects help you identify practical issues and demonstrate value before scaling up.

Keep people in the loop. Trained staff should review questionable images from automated optical inspection and high-resolution cameras to fine-tune the system. Invest in comprehensive training programs for your team. Track metrics like defect detection rates and false calls to measure performance. Continuously update your automated inspection systems as products and processes evolve.

You may face challenges such as high upfront costs or complex integration. Running small pilot programs and aligning IT and OT systems before rollout can help. Combine automation with human oversight to manage data and ensure accuracy. Choose mechanical parts inspection tools that support future upgrades and connectivity.

Automated inspection systems transform your approach to quality control. By following these tips, you ensure a smooth transition and maximize the benefits of your investment in mechanical parts inspection tools.

You encounter a range of inspection equipment in manufacturing, from calipers and micrometers to automated systems. Each tool serves a unique purpose and supports your quality control goals. Matching the right tool to each task ensures accurate results and prevents undetected defects.

• Specific equipment delivers the precision you need for each job.
• Poor tool selection can cause measurement errors and missed issues.
• Advanced systems suit complex parts, while basic checks work for simpler components.

Apply these tips to select and use inspection equipment effectively. You improve product quality and maintain compliance with industry standards.

FAQ

What is the difference between calipers and micrometers?

You use calipers for general dimension checks. Micrometers provide higher accuracy for thickness or diameter. Calipers suit quick measurements. Micrometers excel in precision tasks.

How do you choose between manual and digital inspection tools?

Tip: Select manual tools for flexibility and custom jobs. Choose digital tools for speed, accuracy, and automated data collection in high-volume production.

When should you use non-contact inspection methods?

You use non-contact methods for fragile, soft, or moving parts. These methods prevent surface damage and work well in automated, high-speed environments.
